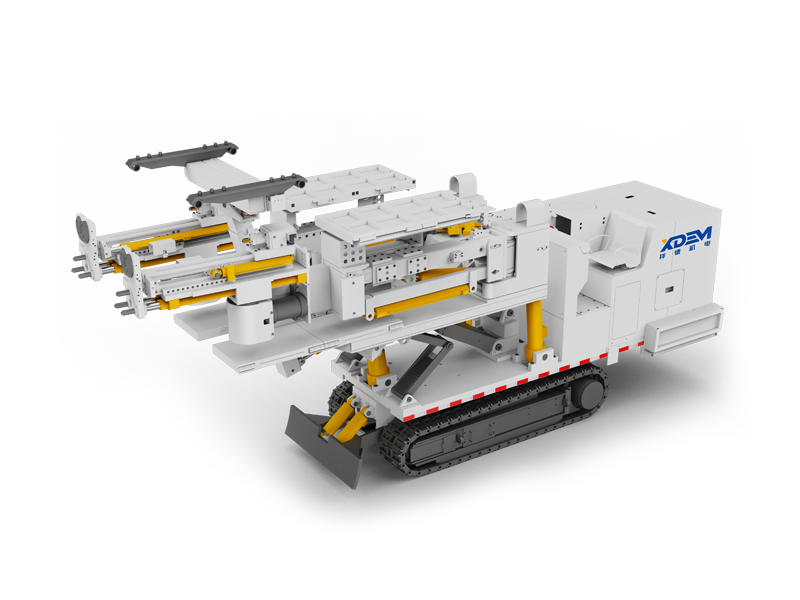

Narrow Chassis Twin-Boom Roof Bolting Rig

Product Introduction

This equipment is suitable for construction scenarios where large machinery requires passing space in roadways or for bolting operations in narrow roadways. With a body width of only 700 mm and remote-controlled moving, it facilitates safe vehicle passing. The high single-grouser track provides good site adaptability, making it suitable for surfaces with significant mud or loose coal. Equipped with various electrical devices such as explosion-proof switches, lighting lamps, and methane power cutoff devices, it offers high intelligent expandability.

Product Parameters

Specifications
Parameter	Unit	Model
Parameter	Unit	CMQ2-400/45
Rated Torque (Front/Rear Drilling Arm)	N·m	400
Rated Speed (Front/Rear Drilling Arm)	r/min	250
Rated Pressure (Front/Rear Drilling Arm)	MPa	21
Max. Feed/Pull-back Force (Front/Rear Drilling Arm)	kN	20/15
Feed/Retract Stroke	mm	1470
Opening Height Adjustment Range	mm	300 ～ 2700
Drilling Arm Center Distance	mm	3000 ～ 3600
Ground Clearance	mm	180
Drilling Arm Lifting Stroke	mm	1800
Drilling Arm Secondary Lifting Stroke	mm	360
Drilling Arm Swing Angle Along Machine Body	(°)	–90 ～ +90
Drilling Arm Transverse Travel Along Machine Body	mm	300
Motor Power	kW	45
Weight	kg	4000
Dimensions (L×W×H)	mm	3400×700×2000
