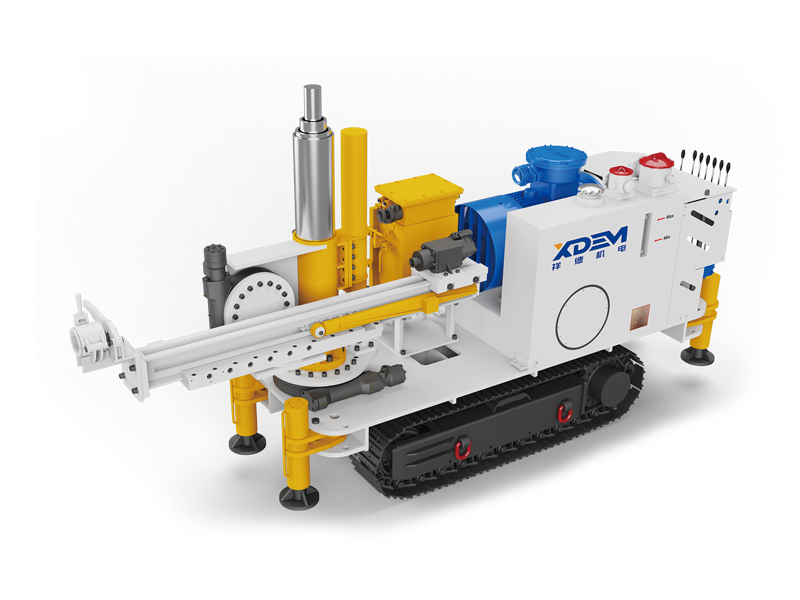

Coal Mine Crawler-Mounted Hydraulic Roadway Drilling Rig(Side-Mounted)_Coal Mine Crawler-Mounted Hydraulic Roadway Drilling Rig_Drilling Rig Series_Products and Solutions_Shandong xiangde Electromechanical co., ltd

Product Introduction

This series of drilling rigs is used for multi-angle drilling of gas extraction holes, water exploration and drainage holes, pressure relief holes, and other engineering boreholes during underground coal mine drilling operations. The machine can achieve a full 360° layout of boreholes across the entire face, ensuring high construction efficiency. Equipped with a secondary feed device on the slide frame, it enables cross-belt operations. The three-column upper stabilization structure ensures precise borehole positioning and overall machine stability. The combined design of planar and cylindrical guide rails enhances the lifespan of the slide frame and ensures continuous and stable drilling operations. The machine features a fully hydraulic control system with chuck and clamp linkage functions, along with multiple protection devices such as anti-slip and hydraulic locking, ensuring safe and efficient operations.

Product Parameters

Specifications
Parameter	Unit	Control Model
Parameter	Unit	ZDY1900LPS(C)	ZDY4600LPS(C)	ZDY6500LPS(C)
Rated Torque	N·m	1900	4600	6500
Rated Speed	r/min	80	60	60
Max. Feed/Pull-back Force	kN	102/70	180/180
Feed/Pull-back Stroke	mm	600/780/1300 (Customizable per Mine Requirement)
Opening Height Adjustment Range	mm	650～2300	730～2500
Compatible Drill Pipe Diameter	mm	42/50/63	50/63/73	73/89
Spindle Tilt Angle	(°)	0～360
Azimuth	(°)	0～360
Motor Power	kW	37	55	90
Rated Voltage	V	660/1140
Weight	kg	3800	5800	6500
Dimensions(L×W×H)	mm	3300×800×1850	3800×1000×1950	3800×1100×1950
